DETAILS

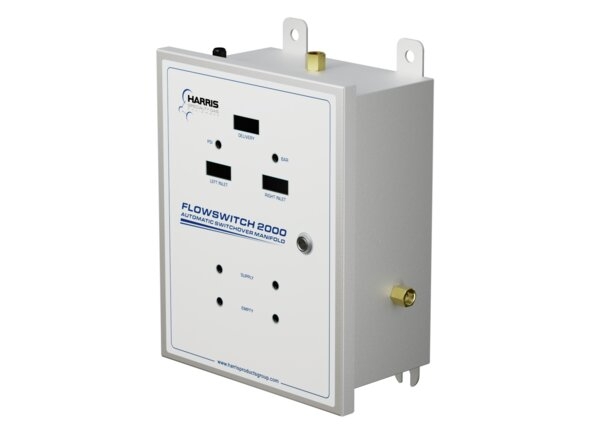

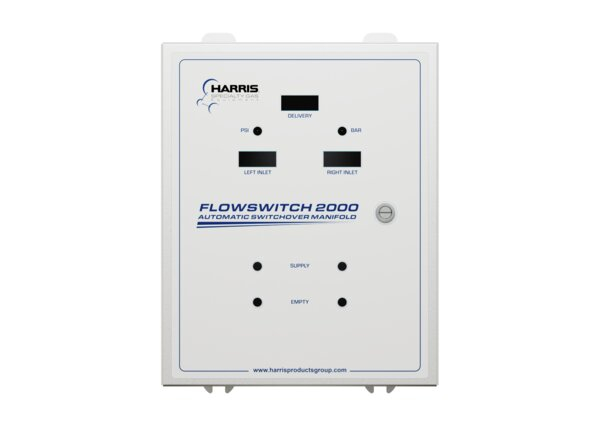

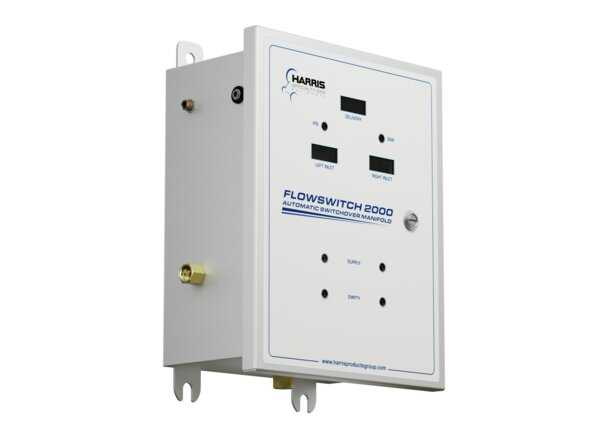

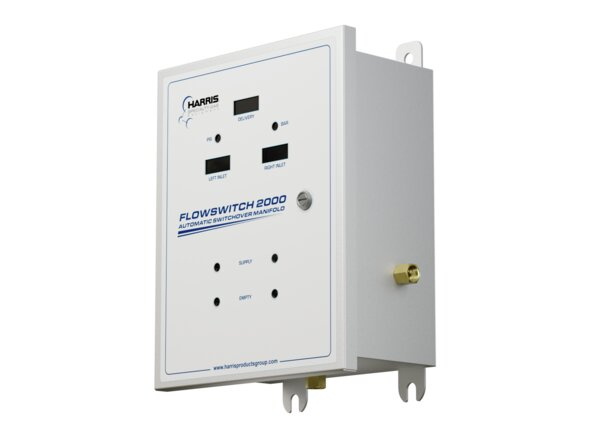

The FlowSwitch 2000 Switchover Manifold System can manage the flow of a variety of gases from both cylinders and dewars into a facility. The simple operation allows you to program your unit with no ongoing maintenance and keep the enclosure locked to prevent unauthorized changes. As your facility grows and changes, the FlowSwitch 2000 system can be upgraded to meet the needs of your applications. System includes headers for up to 8 cylinders, external A/V alarm and outlet shutoff valve. An external heater can be purchased for gases susceptible to freezing.
Features
- Can be set for FIFO or dedicated primary gas withdrawal
- Modular, expandable header system for multiple cylinders
- Designed for high purity or industrial gases
- Ability to connect to existing BMS systems (dry contacts)
- Brass construction
- Check-back feature for liquid dewars
- Economizer for reserve side liquid dewars
- Adjustability located inside enclosure to prevent undesired changes
Disclaimers
Warranty Information
- 1 Year
What's Included

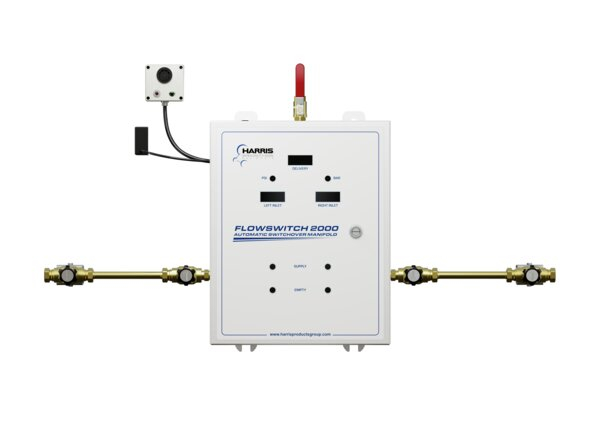

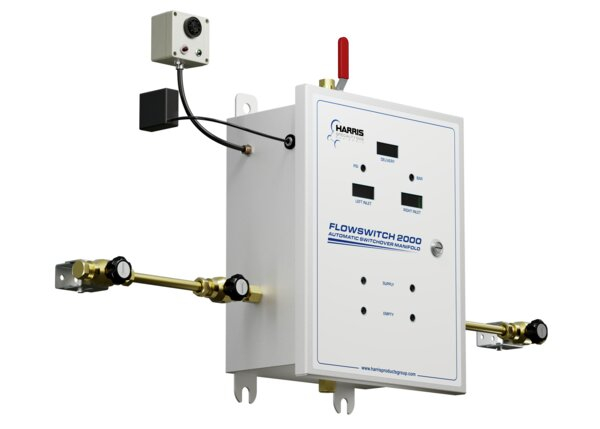

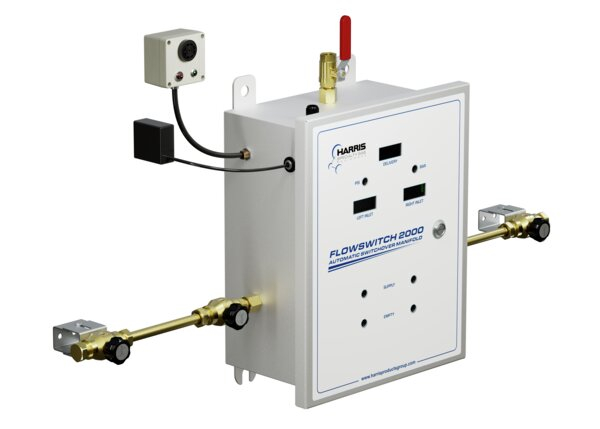

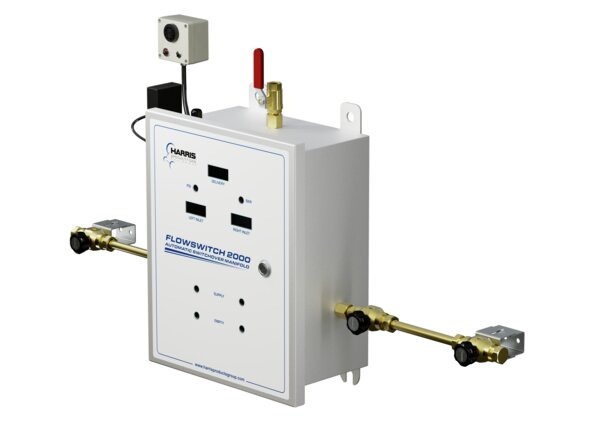

- Manifold Hub;9 ft. Power Cable;10 ft. Alarm Cable;97 Decibel Alarm;Outlet Isolation Valve;Modular Header Assembly for 2-8 inlets - PIGTAILS SOLD SEPARATELY
Specifications
Equipment
| Construction | Brass |
| Electrical Power Requirements (Voltage) | 120 VAC 50/60 Hz |
| Outlet Connection | 1/2 in. - 14 NPTF |
| Recommended Items/Accessories | External Heater 110V - PN 9009598 Remote Alarm Cable 100 ft. - PN 9010574 Cylinder Wall Bracket Single - PN 4302650 Cylinder Wall Bracket Double - PN 4302656 Cylinder Wall Bracket Triple - PN 4302659 Cylinder Wall Bracket Four - PN 4302662 Pigtails - Contact Customer Service for Part Number |
| Typical Application | High purity gas applications, industrial gas applications, GC/MS, Incubators, Welding, Pharmaceutical, Life Sciences |
Warranty
| Warranty | 1 Year |
